Application Guidelines

Application Guidelines
Application Guidelines

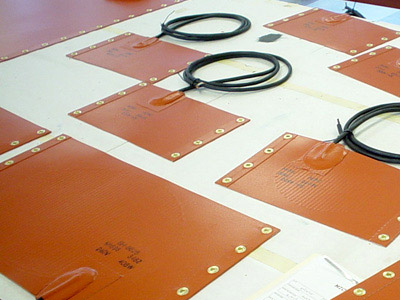

(Click image to enlarge)

  1. The heating blanket needs to be in contact with the surface to be heated over the entire surface of the blanket. Insure there are no air gaps, holes, indentions, or protrusions between the heating blanket and the part to be heated.
  2. Do not overlap blanket onto itself unless designed for this purpose.
  3. Do not allow blanket to be damaged by sharp objects.
  4. Our standard blankets are not designed for immersion.
  5. If equipped with Velcro closure, blanket should not exceed 300°F.
  6. If equipped with an adjustable thermostat, increase temperature slowly over time and monitor heating blanket in order to determine the proper thermostat setting. Adjustable thermostats are capable of 550°F. For the longest life of the heating blanket, temperatures of 450°F should not be exceeded for long periods of time.
  7. If equipped with either an adjustable or fixed temperature thermostat, be aware that the temperature of the entire blanket will be determined by the area of the blanket and/or part directly under the thermostat sensing area. Unless otherwise specified the thermostat will sense the temperature of the heating blanket, not necessarily the temperature of the part being heated. Heaters will at first greatly exceed the thermostat set point until the heater has cycled on and off several times allowing the temperatures of the blanket, the heated part, and the thermostat mold to achieve a similar temperature value.
  8. Insure sufficient amperage is available to operate the heating blankets.
  9. It is recommended the surface that the heating blanket is in contact with, be well grounded for safe operation.
  10. If you have any questions about our silicone flexible heating blankets, please don't hesitate to email or call us on our toll free number: 888-478-0630.
